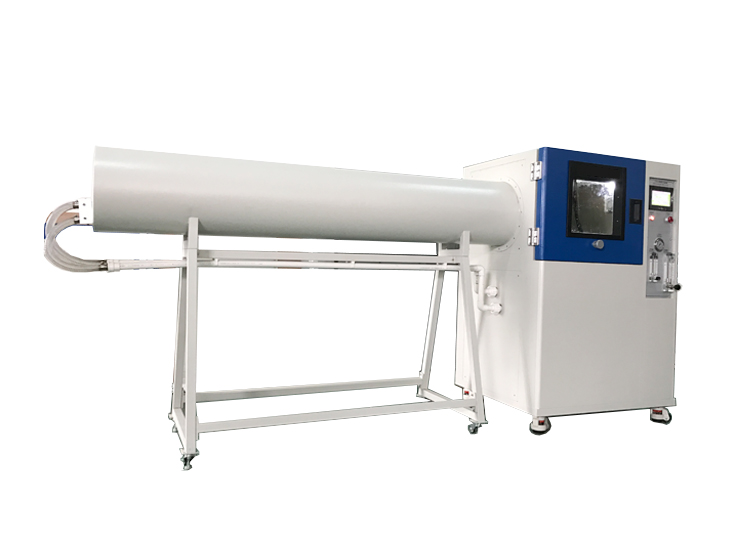

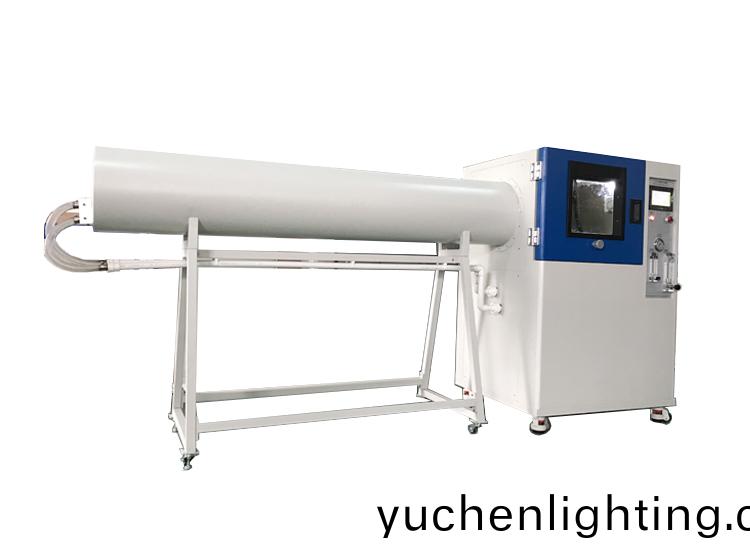

IPX5 IPX6 Strong water Jet spray test chamber/test machine

Inner size(mm)W*D*H

800*800*800

900*900*900

1180*1180*1000

1180*1180*1180

1180*1180*1300

Outer size(mm)W*D*H

4000*1050*1600

1150*1150*1700

4000*1450*1800

4000*1450*1850

4000*1450*2000

Turntable diameter(mm)

600

600

800

¢800

800

IPX5 diameter(mm)

6.3

IPX6 diameter(mm)

12.5

IPX5 flow(L/min)

12.5±0.625

IPX6 flow(L/min)

100±5L/min

Power(Mpa)

According to the provisions of water flow regulation

spray water distance

2.5M

Pump

stainless steel multi-stage pump

Spray nozzle fixing method

machinery fixation

Water pipe materials

Stainless steel+PPR

Inner box materials

SUS304#stainless steel

Sample table materials

SUS304#stainless steel plate

protector

Electric leakage, water-break, cutting-out

Power supply(V)

380V

Power(KW)

3

Standard

IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6)
